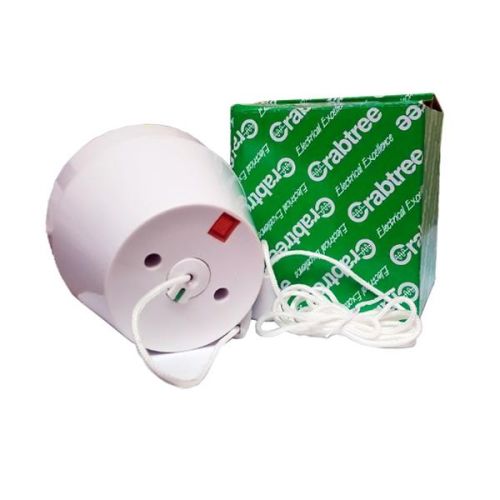

Crabtree 50Amp Ceiling Switch

• Type tested to BS EN 60669-1
• For use on 240/250V 50Hz supply

Note: Cable end preparation is carried out after the switch has been fixed, thus leaving both hands free to carry out cable termination and avoiding the need to push excess cable back into the ceiling void

• Isolate mains before commencing work
• For ceiling mounting, the switch must be securely fixed to a joist or suitable 'stretcher' using No. 8 wood screws
• Mounting box Integral pattress for surface mounting
• Can be mounted to a large circular conduit box
• Complies with the requirements of the IEE Wiring Regulations (BS 7671) for use as an isolating device
• Terminal will accept up to 10mm² cable
• Standard pull cord/acorn is 1.5m long, in white
• Suitable for use with 25mm x 16mm trunking
• Rated for non-inductive loads only

Dimensions:

• Base diameter: Ø 99mm x Height: 78mm
• Width between fixing holes: 72mm
