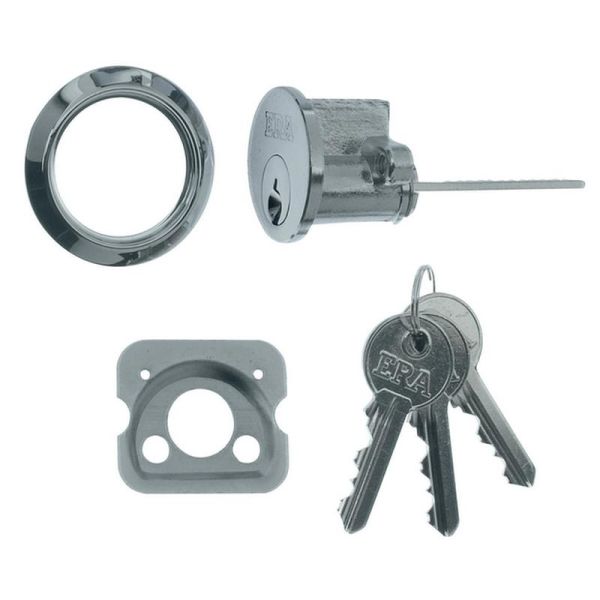

ERA® Brushed Chrome Replacement Cylinder

ERA® Brushed Chrome Replacement Cylinder

• Ideal for replacing existing cylinders
• For wooden doors between 35-54mm thick
• Brush satin chrome finish
• Supplied with 3 keys

• a screwdriver and a hacksaw

• Remove lock from inside of door.
• Unscrew the two connecting bolts and remove the old cylinder.
• Ensure that the connecting rod is the same length as on the cylinder that you have removed by hacksawing off the excess if necessary.
• Insert the new cylinder through the rose and screw into position with the two bolts (on doors less than 45mm wide these bolts will need to be shortened). It is important to ensure cylinder is correctly aligned.
• Replace the lock. Be sure to engage the connecting rod correctly in the back of lock before tightening.
