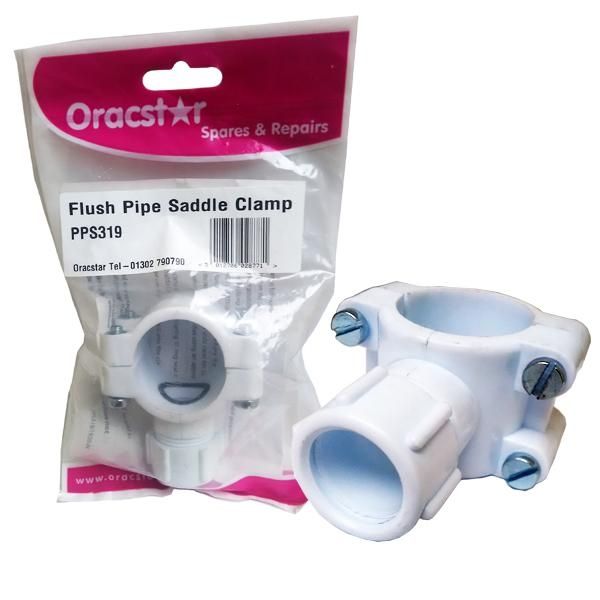

Oracstar PPS319 Flush Pipe Saddle Clamp

• Saddle clamp

Fit flush pipe saddle clamp as follows:

1. Select a high position on the flush pipe for fixing the saddle clamp
2. Ensure 'O' ring seal is in the position in recess of saddle clamp
3. Place the 2 halves of the clamp around the flush pipe at the selected position
4. Secure clamp DO NOT OVERTIGHTEN
5. Mark through the clamp inlet the position where the hole is to be cut in the flush pipe, loosen the saddle clamp and slide clear for cutting
6. Cut clean hole, (maximum size 16mm dia) using an appropriate tool i.e. hole saw cutter
7. Re-position saddle clamp over hole ensuring 'O' ring seal remains in correct position and fully tighten Saddle Clamp
8. Plastic overflow pipe can then be inserted into the clamp inlet and secured with the compression nut
